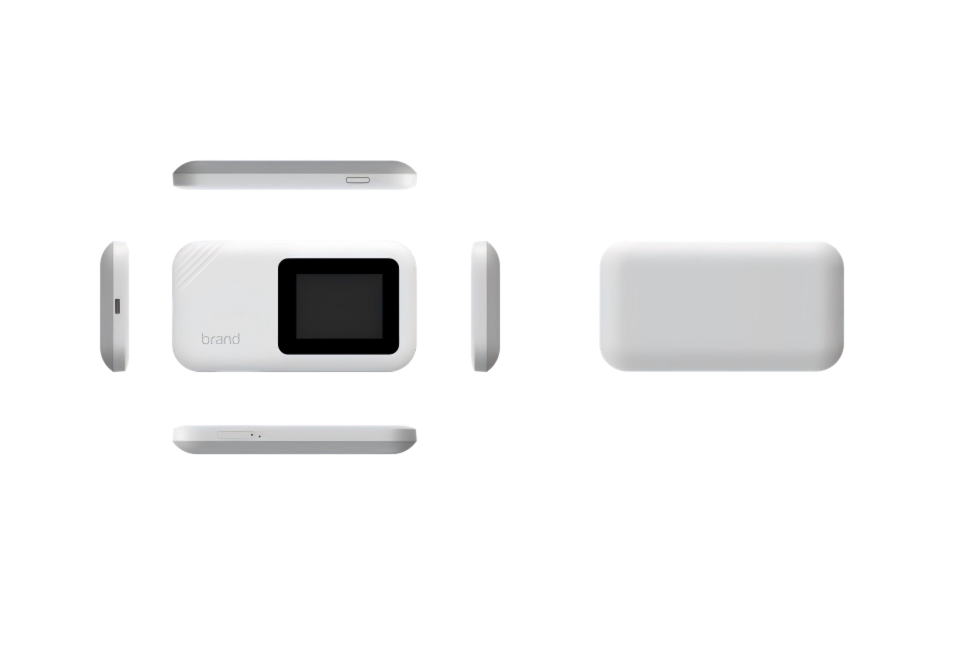

The SRT8780 is a 5G mobile hotspot solution developed based on the MeiG Smart SRM817 module. Powered by the Qualcomm Dragonwing™ X72 platform, the solution integrates 5G and Wi-Fi 7 technologies, achieving a theoretical download speed of up to 4Gbps over 5G NR and up to 3.6Gbps over Wi-Fi. The solution features a multi-region SKU design with the SRM817 module, allowing flexible adaptation to different regional network requirements by simply swapping the module. Equipped with a 2.4-inch touchscreen and a 5000mAh battery, the device delivers all-day battery life and supports up to 64 simultaneous user connections. Whether for business travel, outdoor activities, home entertainment, or mobile office scenarios, the SRT8780 provides a fast and stable network experience.

Introduction
  • 01

    Key Features

    Dimension: 140*75*17mm

    Weight: About 220g

    Color: Black

  • 02

    Air Interface

    Technical Standard: Release 17

    Frequency

    -5G NR Sub6G:
    FDD: n2/5/7/12/13/14/25/26/30/66/70/71; TDD: n38/41/48/77/78; SDL: n29

    -LTE:
    FDD: B2/4/5/7/12/13/14/17/25/26/29/30/66/71; TDD: B38/41/42/43/48; -GPS:L1

    Wi-Fi: 2.4GHz&5GHz&6GHz:Wi-Fi7 2*2 MIMO; 802.11 a/b/g/n/ac/ax/be, DBDC

  • 03

    Performance

    Maximum Data Throughput

    5G NR:
    MAX DL4.14Gbps
    MAX UL900Mbps
    4G :
    MAX DL1.6Gbps
    MAX UL200Mbps
    WiFi:BE3600

  • 04

    Hardware

    BB Chipset: Qualcomm SDX72

    Interface: 1*Type-C

    Battery: Li-ion Battery 5000mAh

    USIM/SIM: 4FF SIM card

    LCD: TFT LCD, 2.4 inch touch screen

    Antenna: Default Internal Antenna, total 9:4G/5G x 7, Wi-Fi x 2

    Buttons: POWER, Reset

    ESD: ESD Protection circuit;Contact±8KV, Air±10KV

  • 05

    Software

    Wi-Fi Security: OPEN & WPA2-PSK & WPA-PSK/WPA2-PSK & WPA3

    IPv4/IPv6: Support

    Firewall: Mac/IP address filter, Port forwarding, Wi-Fi Black/White list

  • 06

    Environment

    Operating Temperature: 0°C to +35°C

    Storage Temperature: -20° Cto +60° C

    Humidity: 5%~ 95%
