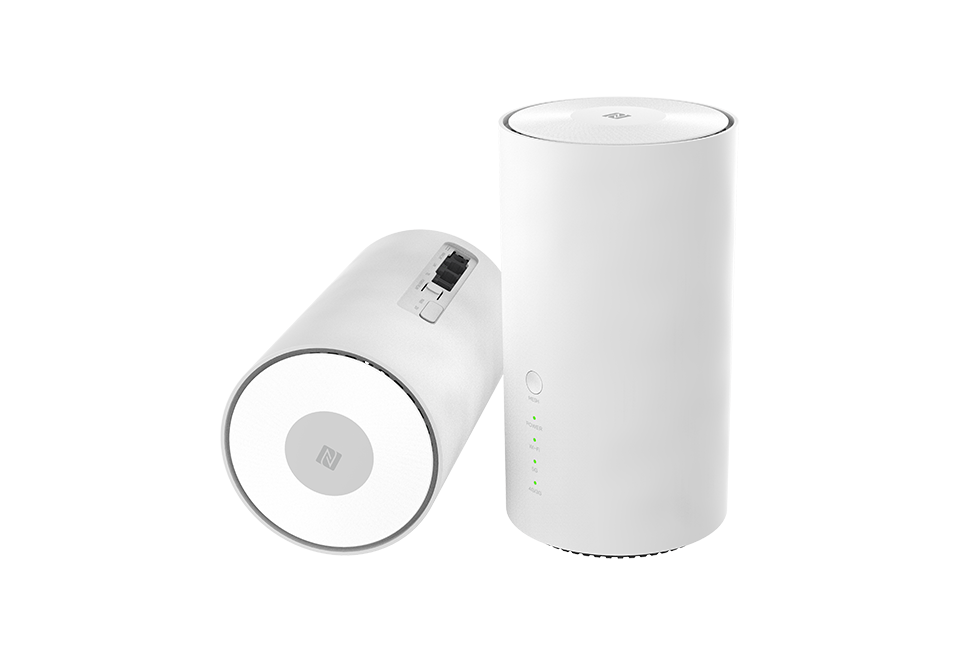

SRT858M is a wireless gateway integrating NR/LTE and high-speed Ethernet uplink access, providing users with flexible data access and voice services. SRT858M is a multi-user 5G wireless gateway suitable for home or small office environment. It supports multiple users at the same time, including digital cameras, laptops, games and multimedia players, all Wi-Fi-enabled devices can access the Internet. 5G CPE can be used to set up specific networks and share network connections anywhere via cellular connections or Ethernet connection. SRT858M adopts Qualcomm SDX75 platform with AI Powered engine, supports 3GPP Release 18, terminal downlink up to 6Gbps, and uplink up to 0.9Gbps. Support the newest Qualcomm WiFi7 solution, the Wi-Fi feature can support 2.4G and 5.8G DBDC up to7.2Gbps，and also support Easy mesh R4, can build a network connect with other’s Wi-Fi router. It also supports2.5G Ethernet ports plus 1G Ethernet ports can connect to other device by cable. SRT858M support a 9dBi high gain antenna in 2.6&3.5G high frequency bands to make a best coverage.
Compatible with LTE, Sub6, 802.11 a/b/g/n/ac/ax/be
EA version: [5G NR]: n1 / n3 / n5 / n7 / n8 / n20 / n28 / n38 / n40 / n41 / n71 / n75 / n76 / n77 / n78 / n79; [LTE]: B1 / B3 / B5 / B7 / B8 / B20 / B28 / B32 / B38 / B40 / B41 / B42 / B43 / B71; [UMTS]: B1 / B3 / 5 / 8
SA version: [5G NR]: n2 / n5 / n7 / n8 / n12 / n13 / n28 / n38 / n40 / n41 / n66 / n77 / n78; [LTE]:B2 / B4 / B5 / B7 / B8 / B12 / B13 / B28 / B38 / B40 / B41 / B42 / B43 / B66; [UMTS]: B2 / B4 / B5 / B8
NA version: [5G NR]: n2 / n5 / n12 / n13 / n14 / n25 / n26 / n29 / n30 / n41 / n48 / n66 / n71 / n77 / n78; [LTE]:B2 / B4 / B5 / B12 / B13 / B14 / B25 / B26 / B29 / B30 / B41 / B42 / B43 / B48 / B66 / B71; [UMTS]: B1 / B2 / B4 / B5 / B8
WiFi7
2.4GHz&5GHz, WIFI 4*4 MIMO, 802.11 a/b/g/n/ac/ax/be, DBDC be7200，user 256
5G SA NSA mode 300M bandwidth
•5G NR: (DL/UL) 6Gbps/0.9Gbps
•LTE: (DL/UL) 1.6Gbps/200Mbps
Support Receive Diversity
DL 4x4 MIMO
Qualcomm SDX75
Modem: 8Gb nand+8Gb LPDDR4
＜24W
DC12V/2A
4FF SIM; card support SIM/USIM/UIM, standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card; internal push-pull SIM slot
Power Indication; Wi-Fi Indication; 5GIndication LED; 4GIndication LED
USB 3.2 TYPE-C port
LTE/NR Antenna*10, Wi-Fi*4，N41/77/78/79 9dBi High Gain, 4RX Smart antenna selection，2*TS-9 external antenna is optional
POWER, Reset, WPS (easy mesh ）
1*WAN+1*LAN
•1*2.5Gbps + 1*1Gbps port
•1*RJ11，support VOIP/VOLTE/VONR (optional）
Pinhole
Supported NFC to connect Wi-Fi
Not supported, can choose UPS power
Support
Normal: 0°C ~ +45°C;
-20° C ~ +70° C
5%~ 95%
