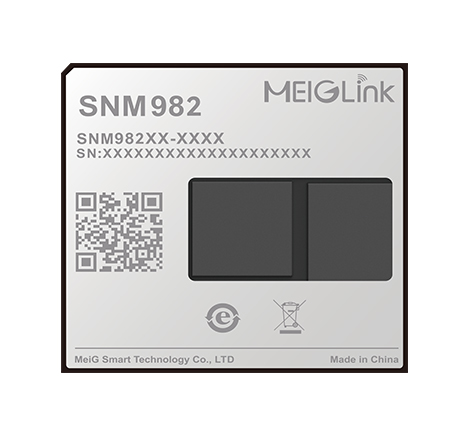

AI Computing Module SNM982

The SNM982 series module is built on Qualcomm’s 8 core Oryon™ CPU (QCS8625), featuring 1× CorteX4 @ 3.3 GHz, 5× Cortex A720 @ 3.2 GHz, and 2× Cortex A520 @ 2.3 GHz. It is fabricated on a 4 nm process with PoP (Package on Package) technology and supports display resolutions up to 8K.It integrates a Qualcomm NPU with HVX V75, capable of up to 8K@30 fps video encoding or 8K@60 fps decoding, with support for H.264, H.265, and VP9. The Adreno™ GPU 750 provides support for OpenGL ES 3.2, Vulkan 1.3, and OpenCL 3.0. In addition, the module features the Qualcomm® Hexagon™ Tensor Processor with mixed precision support (INT4 and INT8), compatibility with ONNX, PyTorch, TensorFlow, Caffe, and TensorFlow Lite, and delivers over 60 TOPS of AI performance (INT8).

The SNM982 series comes with a rich set of interfaces, including LCM and DisplayPort display outputs, touchscreen, camera, PCIe, USB, I²C, UART, SPI, and more.

Target applications include video conferencing systems, VR cameras, intelligent robots, video surveillance, security monitoring, smart data capture devices, live streaming terminals, and a wide range of other embedded AI solutions.

Advantages:
Qualcomm 8 core Oryon™ CPU, prime core up to 3.3 GHz

Over 60 TOPS AI performance (INT8)

Dual / triple display support

3 ISPs, 6× 4 lane MIPI CSI interfaces

1× USB 3.1 Gen 2

8K@30 fps video encoding / 8K@60 fps video decoding

PCIe interface

Basic Attributes：
Product number：	Smart module with high computing power SNM982

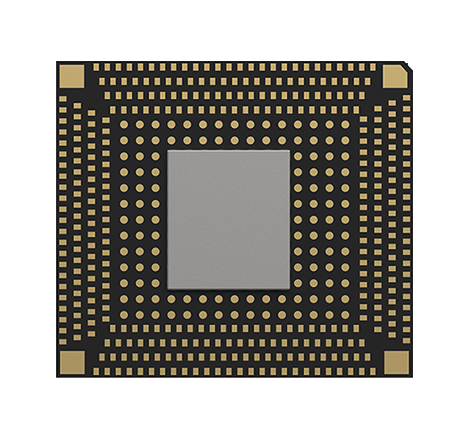

Package：	LGA
OS：	Linux 5.15
Storage：	64+4GB/128+8GB
Working temperature：	-25°C ~ +75°C
Storage temperature：	-40°C ~ +90°C
Size(mm)：	45.0 x 40.0 x 3.0mm
operating voltage：	3.5V~4.35V（typical value：3.8V）
Certification：	CCC*
Outstanding Features：
WLAN：	WIFI 7(2x2 MU MIMO)
BT： BT 5.3
Hardware Interfaces：
PCIe interface：	1
I2C interface：	3
UART interface：	3
SD Card interface：	1
SPI interface：	5
ADC interface：	2
PWM interface：	2
GPIO interface：	≥35
audio interface：
Digital interface：	• Digital interface：
	5 x IIS/TDM/PCM interface
	support Audio over USB Type-C
Camera Port：
• 6 x 4-lane MIPI-CSI*
• Qualcomm Spectra™ 680 ISP
(36 M + 36 M + 36 M) @ 30 fps - triple camera
(64 M + 36 M) @ 30 fps - dual camera
108 M @ 30 fps - ZSL
Display Port：
• 2 x 4-lane MIPI-DSI
support up to 3480 × 2160@120Hz or 3360 x 1600@144H
Video code：
Decode：	4K@240fps or 8K@60fps H.264/H.265/VP9
Encode：	4K@120fps or 8K@30fps H.264/H.265/VP9
Remarks: * under development
