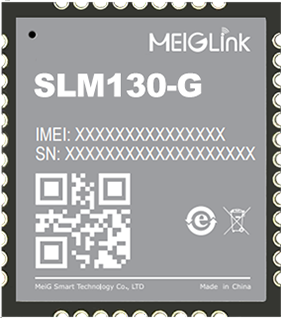

SLM130-G (CG4A) is high-perfarmance NB-IoT module with extremely low power consumption.
The SLM130-G (CG4A)'s ultra-compact，unified form factor of 17.7x15.8x2.0mm makes it a perfect choice for a wide range of IoT applications，ranging from smart smoke sense，smart metering，bike sharing，smart parking，smart city，security，asset tracking，smart home appliances，smart wearable，agriculture and environmental monitoring，etc.
Main advantages:
● LCC package，easy to be batch produced.
● Ultra-low power consumption，Ultra-high sensitivity.
● Multi-band，Embedded with abundant Internet service protocols.
● Low-voltage power supply (2.2V to 4.2V).
● Low power and power saving design.
| Basic Attribute: | |

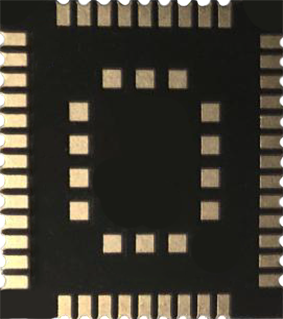

| Package： | LCC 44 pins & LGA 14 pins |
| Dimensions： | 17.7*15.8*2.0 mm |
| Frequency Bands: | |
| LTE FDD : | B3/B5/B8/B20/B28 |
| Protocol Stacks: | |
| TCP/UDP/MQTT/COAP/LwM2M/SSL | |
| Data Transmission: | |
| SingleTone: | DL25.5Kbps(Max),UL16.7Kbps(Max) |
| MultiTone: | DL127Kbps(Max),UL159Kbps(Max) |
| Supply Voltage Range: | |
| VBAT: | 2.2V～4.5V |
| Output Power: | |
| 23dBm±2db | |
| Sensitivity: | |
| -116.5dBm | |
| Power Consumption*: | |
| 1.75uA@PSM 0.334mA@ldle Mode(DRX=2.56s) 0.112mA@ldle Mode(eDRX=40.96s) | |
| Humiture Specification: | |
| Normal operating temperature： | -30℃~+75℃ |
| Limited operating temperature: | -40℃～+85℃ |
| Storage temperature: | -40℃～+90℃ |
| Ambient Humidity： | 5%～95% |
| ESD: | |
| VBAT, GND: | (Air discharge: ±8KV, Contact discharge: ±4KV) |
| RF antenna interface: | (Air discharge: ±8KV, Contact discharge: ±4KV) |
| Other interfaces: | (Air discharge: ±1KV, Contact discharge: ±0.5KV) |
| Interfaces*: | |
| UART×3 USIM(3.0V/1.8V)×1 ADC×1 Netlight×1 Antenna×1 RI×1 SPI*×1 | |
| AT command control: | |
| 3GPP Rel-13/Rel-14 | |
| Certification: | |
| CE/CTA/SRRC*/RoHS* | |
| *means under development/on-gping/planning | |
