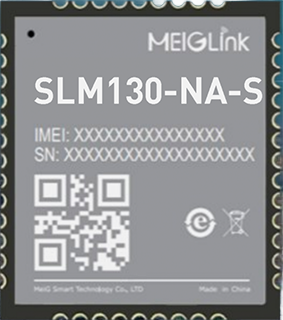

SLM130-NA is a high-performance NB-loT module with extremely low power consumption.
The SLM130-NA-S's ultra-compact, unified form factor of 17.7mmx15.8mmx2.0mm makes it a perfect choice for a wide range of loT applications, smart meters, positioning tracking, door magnetic monitoring and other Internet of things products, etc.
Main advantages:
● LCC Package, easy to be batch produced.
● Ultra-low power consumption, Ultra-high sensitivity.
● Multi-band, Embedded with abundant Internet service protocols.
● Low-voltage power supply (2.v to 4.5v).
● Low power and power saving design.
| Basic Attribute: | |

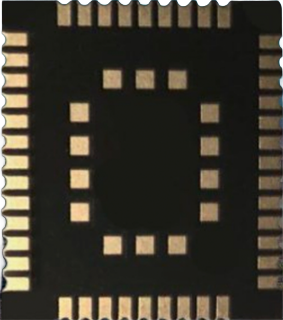

| Package： | LCC 44 pins+LGA 14 pins |
| Dimensions： | 17.7*15.8*2.0 mm |
| Frequency Bands: | |
| LTE FDD : | default: B2/B4/B12/B13/B66/B5/B26/B71 optional: B1/B5/B8/B3/B18/B20/B28/B26 |
| Protocol Stacks: | |
| TCP/UDP/MQTT(s)/COAP/LwM2M/SSL | |
| Data Transmission: | |
| SingleTone: | DL25.5Kbps(Max),UL16.7Kbps(Max) |
| MultiTone: | DL102Kbps(Max),UL157Kbps(Max) |
| Supply Voltage Range: | |
| VBAT: | 2.0V～4.5V |
| Output Power*: | |
| 23dBm±2db | |
| Sensitivity: | |
| -114.5dBm | |
| Power Consumption*: | |
| 1.75uA@PSM 0.334mA@ldle Mode(DRX=2.56s) 0.112mA@ldle Mode(eDRX=40.96s) | |
| Humiture Specification: | |
| Normal operating temperature： | -30℃~+75℃ |
| Limited operating temperature: | -40℃～+85℃ |
| Storage temperature: | -40℃～+90℃ |
| Ambient Humidity： | 5%～95% |
| GNSS*: | |
| GPS/QZSS: | L1C/A |
| BDS: | B1l, B1C |
| GLONASS: | G1 |
| Galileo: | E1 |
| SBAS: | L1C/A(WAAS, EGNOS, MSAS, GAGAN, SDCM) |
| ESD*: | |
| VBAT, GND: | (Air discharge: ±8KV, Contact discharge: ±4KV) |
| RF antenna interface: | (Air discharge: ±8KV, Contact discharge: ±4KV) |
| Other interfaces: | (Air discharge: ±1KV, Contact discharge: ±0.5KV) |
| Interfaces*: | |
| UART×3 USIM(3.0V/1.8V)×1 ADC×1 Netlight×1 Antenna×1 RI×1 SPI*×1 | |
| AT command control: | |
| 3GPP Rel-13/Rel-14/Rel-15/Rel-16* | |
| Certification: | |
| FCC/PTCRB*/CE*/SRRC*/RoHS* | |
| *means under development/on-gping/planning | |
