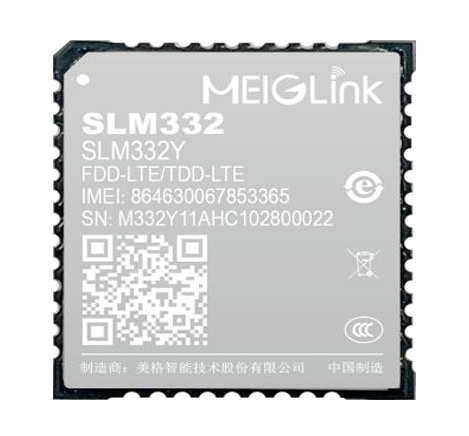

SLM332Y Module

SLM332Y is a new generation of LTE Cat.1 wireless communication module, which adopts a domestic chip scheme, supports maximum downlink rate 10Mbps and maximum uplink rate 5Mbps; package adopts 17*15.8*2.4mm smaller size, convenient customer design size requirements, rich pin definition, meet the needs of customer multimedia and OPEN development.

SLM332Y series module support the following market: SLM332Y-C.

SLM332Y has rich network protocols (IPv4, IPv6, UDP, TCP, DTLS, TLS, MQTT, HTTP(S), RNDIS, PPP), and integrates multiple industrial standard interfaces, including rich peripheral expansion, greatly expand the application scope of M2M. Products can be widely used in industrial meter, shared equipment, security monitoring, financial POS, Tracker, public network POC and other products.

Access rates supported by SLM332Y: TDD-LTE: 8Mbps/2Mbps FDD-LTE: 10Mbps/5Mbps

$17.7 \times 15.8 \times 2.4 m m$

Main advantages:

● Support LTE Cat 1, and max DL rate up to 10Mbps

● Support TDD-LTE & FDD-LTE

● Support WIFI Scan

● Support FOTA remote upgrade

● Rich multimedia interface to meet the needs of intelligent scenes

Basic Attribute:

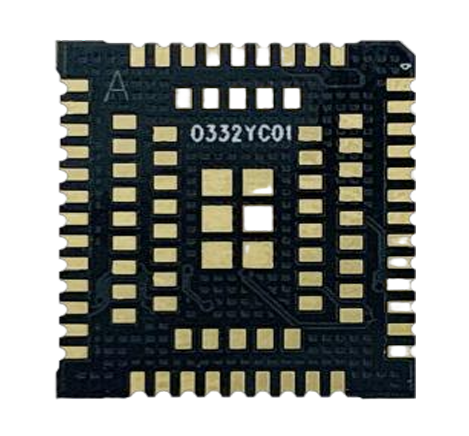

Package：	LCC 44pin+LGA 54pin
Size：	17.715.82.4 mm
Frequency Band:
SLM332Y-C（China）	LTE FDD: B1/B3/B5/B8 LTE FDD: B34/B38/B39/B40/B41

Module Rate:
LTE FDD (Non-CA CAT 1):	Max 10Mbps(DL)/5Mbps(UL)
LTE TDD:	Max 8Mbps(DL)/2Mbps(UL)
Transmission Power:
Class 3 for LTE TDD:	23±2.7dBm
Class 3 for LTE FDD：	23±2.7dBm
Protocol:
TCP/UDP/MQTT/FTP/FTPS/HTTP/HTTPS/LWM2M/COAP
Driver & Tool:
Driver：	Windows ，Linux 2.6，Android 4.0
Tool：	One-click upgrade tool
	FOTA upgrade
Module Interface:
1 x USB 2.0 3 x UART 2 x I2C 2 x I2S 2 x SPI PWERKEY Fly Mode LED Indicator SIM x 2 (support ESIM/SOFTSIM) Antenna interface: Main antenna, WiFi antenna









Electrical Feature:
20uA@power-off 2uA@PSM 2mA@sleep Power supply voltage: 3.1V~4.5V, typical value：3.8V



Certification:
CCC/SRRC/CTA/CE*
Temperature and Humidity:
Work temperature：	-30°C~+75°C
Storage temperature：	-40°C ~ +85°C
Humidity：	5%～95%
*means in development
