Smart Module SLM759

Smart Module SLM759

Smart Module SLM759

SLM759 series module adopts MSM8953 of Qualcomm Snapdragon 600 series. The CPU uses advanced 14nm FinFET. It has built-in 64bit ARM, 8-core Cortex A-53 and 1.8Ghz/2.0Ghz processor. The module supports Decode/encode up to 4K 30fps and H.265, supports the global multi-mode LTE smart module with 16GB/32GB/64GB memory.


While providing high-speed broadband data access, SLM759 can provide voice, SMS, address book, 2.4G/5G WiFi, BT and GPS functions; it supports dual 13M 3D camera or depth-of-field camera, which can be widely used in POS cash registers, logistics terminals, VR Camera, intelligent robots, video recording, security, automotive equipment, intelligent handheld terminals and other products.


It is applicable to the broadband smart cellular modules with TD-LTE/FDD-LTE/WCDMA/EVDO/TD-SCDMA/CDMA/GSM network standards.


SLM759 adopts Android 7.1 OS, and can support throughput as below:

● TD-LTE: 117/30Mbps

● FDD-LTE: 150Mbps/50Mbps

● WCDMA (DC HSPA+): 42Mbps/5.76Mbps

● EVDO (EVDO RevA): 3.1Mbps/1.8Mbps

● TD-SCDMA (HSPA): 4.2Mbps/2.2Mbps

● CDMA1x: 153.6kbps/153.6kbps

● GSM (EDGE): 236.8kbps/236.8kbps

General features:
OS:

Android 7.1

Storage:

16GB eMMC + 2GB LPDDR3 933Mhz

*Optional 32GB+4GB or larger memory

Working temperature range:

-30°C ~ +75°C

Storage temperature range:-40°C ~ +85°C
Working voltage:3.5V~4.35V(typical value:3.8V)
Size: 43.0x44.0x2.85mm

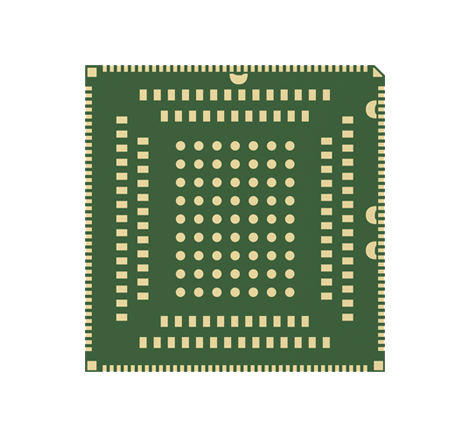

Package:LCC+LGA
Weight:~13.0g
Certification:

Certification CCC*(China)

Outstanding Features:
WIFI:

IEEE 802.11 a/b/g/n 2.4G&5G

*optional 11ac(different HW cost)

*optional 5GFEM(different HW cost)

BT:BT4.1
GNSS:GPS/GLONASS/BeiDou/Galileo
Frequency Band:
SLM759-C:
LTE-FDD:B38/39/40/41
LTE-TDD:B1/3/5/8
WCDMA:B1/5/8
TD-SCDMA:B34/39
EVDO/CDMA:BC0
GSM:B5/3/8
Network Band(Eurasia)SLM759-E
LTE-FDD:B1/3/5/7/8/20/28A
LTE-TDD:B38/40/41
WCDMA: B1/2/5/8
GSM: B2/3/5/8
Network Band ( North America)SLM759-A*
LTE-FDD: B2/4/5/7/12/13/17/25/26
LTE-TDD:B41
WCDMA: B1/2/4/5
GSM: B2/5
Network Band(Japan)SLM759-J*
LTE-FDD: B1/3/8/19/26
LTE-TDD: B41
WCDMA:B1/6/8/19
Network Band(Australia)SLM759-AU*
LTE-FDD: B1/3/5/7/8/28
LTE-TDD: B40
WCDMA: B1/2/5/8
GSM: B2/3/5/8
Network Band ( South America)SLM759-LA*
LTE-FDD: B2/4/5/7/8/28
LTE-TDD:B40
WCDMA:B2/B5/B8
GSM: B2/5/8
Global
SNM759: WIFI:802.11a/b/g/n/ac* ,   BT4.2
* means in developing


Related downloads:

  • Product Specification

    MeiG SLM759 Smart Module Specification_V1.0
