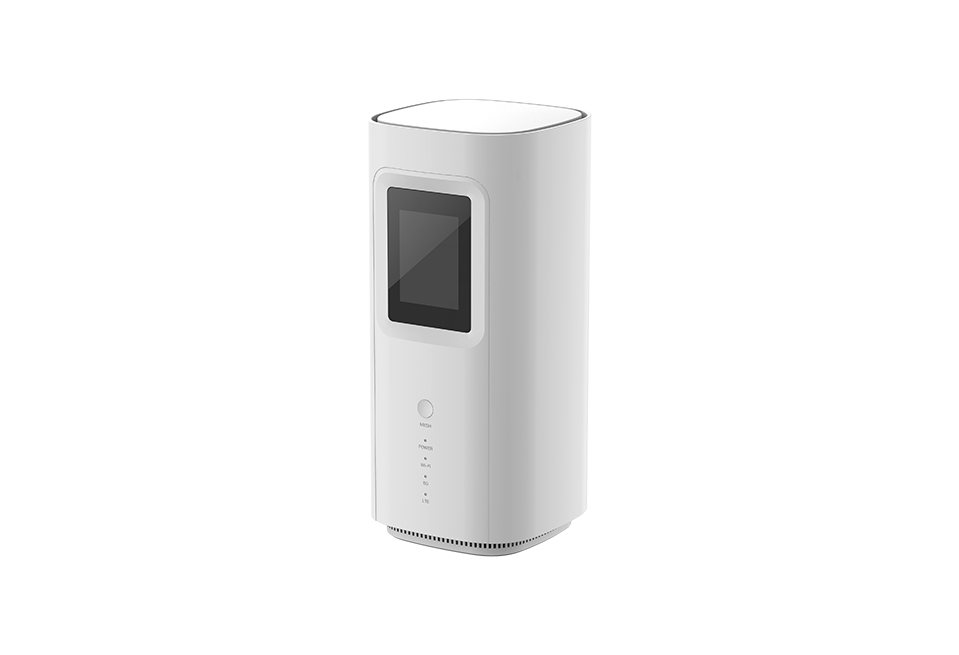

SRT8582 is a wireless gateway integrating NR/LTE and high-speed Ethernet uplink access, providing users with flexible data access and voice services.
SRT8582 is a multi-user 5G wireless gateway suitable for home or small office environment. It supports multiple users at the same time, including digital cameras, laptops, games and multimedia players, all Wi-Fi-enabled devices can access the Internet. 5G CPE can be used to set up specific networks and share network connections anywhere via cellular connections or Ethernet connection.
SRT8582 adopts Qualcomm SDX85 platform with AI Powered engine, supports 3GPP Release 18, terminal downlink up to 8Gbps, and uplink up to 1.8Gbps. Support the newest Qualcomm WiFi7 solution, the Wi-Fi feature can support 2.4G / 5.8G and 6G DBDC up to19Gbps，and also support Easy mesh R4, can build a network connect with other’s Wi-Fi router. It also supports two 2.5G Ethernet ports plus two 1G Ethernet ports can connect to other device by cable.
SRT8582 support a 13dBi high gain antenna to make a best coverage, it supports 8rx antenna in 2.6&3.5G high frequency bands, to make the best performance. With the AI powered engine from SDX85, the device AI modem can work smoothly very well in complex network environments.
Compatible with LTE, Sub6, 802.11 a/b/g/n/ac/ax/be
EA version: [5G NR]: n1 / n3 / n5 / n7 / n8 / n20 / n28 / n38 / n40 / n41 / n71 / n75 / n76 / n77 / n78 / n79; [LTE]: B1 / B3 / B5 / B7 / B8 / B20 / B28 / B32 / B38 / B40 / B41 / B42 / B43 / B71; [UMTS]: B1 / B3 / 5 / 8
SA version: [5G NR]: n2 / n5 / n7 / n8 / n12 / n13 / n28 / n38 / n40 / n41 / n66 / n77 / n78; [LTE]:B2 / B4 / B5 / B7 / B8 / B12 / B13 / B28 / B38 / B40 / B41 / B42 / B43 / B66; [UMTS]: B2 / B4 / B5 / B8
NA version: [5G NR]: n2 / n5 / n12 / n13 / n14 / n25 / n26 / n29 / n30 / n41 / n48 / n66 / n71 / n77 / n78;[LTE]:B2 / B4 / B5 / B12 / B13 / B14 / B25 / B26 / B29 / B30 / B41 / B42 / B43 / B48 / B66 / B71; [UMTS]: B1 / B2 / B4 / B5 / B8
WiFi7
2.4GHz&5GHz&6GHz, WIFI 4*4 MIMO, 802.11 a/b/g/n/ac/ax/be, DBDC be19000，user 256
5G SA NSA mode 300M bandwidth
•5G NR: (DL/UL) 8Gbps/1.8Gbps
•5 LTE: (DL/UL) 1.6Gbps/200Mbps
Support Receive Diversity
DL 4x4 MIMO
Qualcomm SDX85
Modem: 8Gb nand+16Gb LPDDR4
＜36W
DC12V/3A
4FF SIM card; support SIM/USIM/UIM, standard 6 PIN SIM card interface, support 3V SIM card and 1.8V SIM card; internal push-pull SIM slot
Power Indication; Wi-Fi Indication; 5GIndication LED; 4GIndication LED; 2.4 inch touch LCD
USB 3.2 TYPE-C port
LTE/NR Antenna*10, Wi-Fi*8，N41/77/78/79 13dBi High Gain, 8RX Smart antenna selection，2*TS-9 external antenna is optional（support all band）.
POWER, Reset, WPS (easy mesh ）
1*WAN+3*LAN
•2*2.5Gbps + 2*1Gbps port
•1*RJ11，support VOIP/VOLTE/VONR (optional）
Pinhole
Supported NFC to connect Wi-Fi
Not supported, can choose UPS power
Support
Normal: 0°C ~ +45°C;
-20° C ~ +70° C
5%~ 95%
