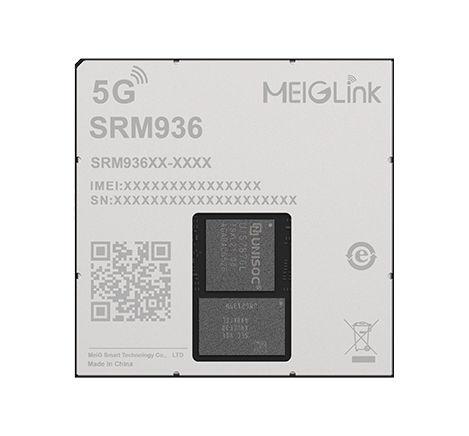

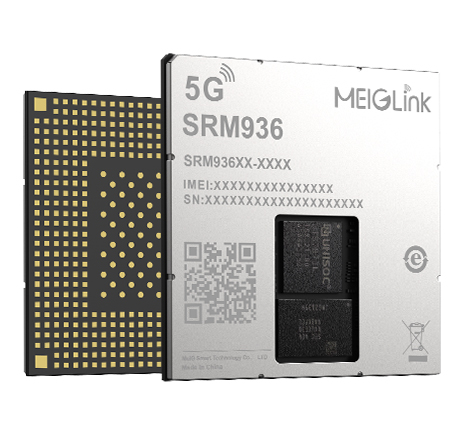

5G Module SRM936

MeiG Smart SRM936 Developed based on the UNISOC 7870 platform (1× Cortex-A76 @ 2.7GHz + 3× Cortex-A76 @ 2.3GHz + 4× Cortex-A55 @ 2.1GHz) with 6nm process technology. It integrates an ARM Mali™-G57 GPU and supports up to 4K@60fps video encoding/decoding in H.264 and H.265 formats.

The SRM936 module runs on Android 13 and Linux operating systems, with a rich set of built-in functional I/O interfaces. It is widely applicable to 5G-enabled products including audio & video recorders, live streaming devices, tablets & handheld terminals, AI boxes, POS terminals, PDAs, ARM servers and robotics.

Main Advantages：

● Supports DL 4×4 MIMO, compatible with SA and NSA networks

● Integrated NPU delivering 8 TOPS AI computing performance

● Supports QHD+ (3360 × 1440) @ 60fps display output

● Supports concurrent multi-camera operation

● Up to 4K@60fps video encoding & decoding

● Runs Android 13, with long-term Android version upgrade support

● High scalability with rich expansion interfaces: PCIe, USB, GPIO, SPI, UART, etc.

● Supports GNSS

SRM936
Basic Informations

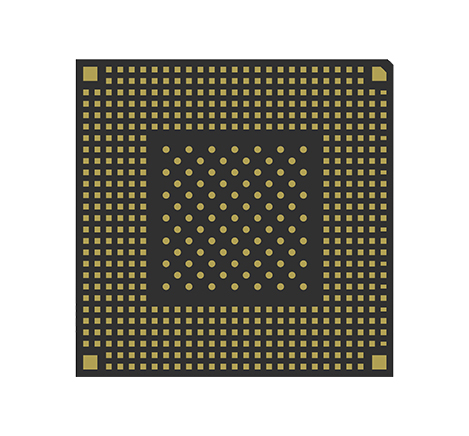

Package	LGA
Size（mm）	55 x 55 x 3.1 mm
OS	Android 13、Linux
Weight	≈17.5g
operating voltage	3.5V~4.4V（class:4.0V）
Work temperature	-30°C~+75°C
Storage temperature	-40°C~+90°C
Frequency
CN	SRM936-C 5G NR: n1/n3/n5/n8/n28/n41/n78/n79 LTE-FDD: B1/B3/B5/B8/B28A LTE-TDD: B34/B38/B39/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8
EU	SRM936-EU: 5G NR: n1/n3/n5/n8/n28/n41/n78/n79 LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LTE-TDD: B34/B38/B39/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8
Media
Decode:	4K@60fps 10 bit H.264/H.265/VP9
Encode:	4K@60fps H.264/H.265
voice	support :speaker、receiver、headset
	support :speaker、receiver、headset
	4K@30fps&4K@60fps
	4K@30fps&4K@60fps
Interface
video interface	4x4-lane MIPI CSI；Single camera supports up to 64 MP @ 30 fps with ZSL
USB	Compliant with USB 3.2 Gen 2 and USB 2.0 specifications Support USB OTG
Speacial Features
WLAN	2.4G15G, 802.11 a/b/g/n/ac
Bulebooth	BT5.0
GNSS	GPS/GLONASS/Galileo/Beidou, L1
Supports firmware update by USB
Certification
Certification	CCC（CN）*
Remarks: *under development
