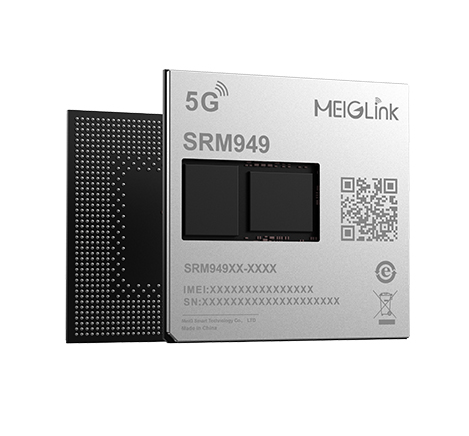

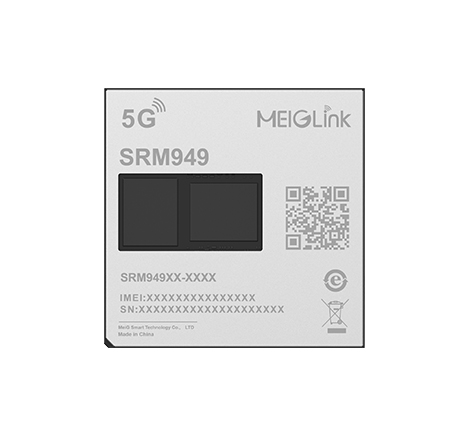

5G Module SRM949

MeiG Smart SRM949 Powered by the Qualcomm Kryo™ 7XX CPU (1× Cortex-A78 @ 2.3GHz + 3× Cortex-A78 @ 2.2GHz + 4× Cortex-A55 @ 1.8GHz), manufactured with 4nm FinFET process and based on 64-bit ARMv8 architecture. It integrates an Adreno™ 7-series GPU with support for OpenGL ES 3.2, Vulkan 1.x, OpenCL 2.0 and DX FL12.

The SRM949 integrates a comprehensive range of functional interfaces, including LCM, touch panel, camera, UART, USB, I2C, SPI and PCIe. It delivers core functions for connected cockpits such as instrument cluster, central infotainment, AVM, DMS, OMS and T-box, enabling a new in-cabin entertainment platform.

Main Advantages：

● Support 5G NR sub-6Ghz， CPU up to 140K DMIPS

● WIFI 6，2x2 MU MIMO

● 6 TOPS AI computing performance

● Supports independent multi-screen display

● 4 x CSI

● Integrates GPS L1+L5 dual-frequency positioning and meets AECS requirements

● Support 4K@60fps encode/4K@120fps decode

● Rich interfaces：USB/SPI/UART/...

SRM949
Basic Infromation

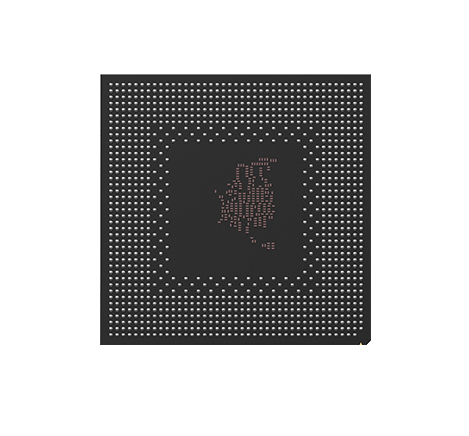

package	LGA
size（mm）	55 x 55 x 3.1 mm
OS	Android 16
weight	≈13g
operating temperature	-30°C~+75°C
Frequency
CN	SRM949-CN: 5G-FDD: n1/n3/n28a； 5G-TDD: n41/n77/n78/n79； 4G-FDD: B1/B3/B5/B8； 4G-TDD: B34/B38/B39/B40/B41； UMTS: B1/B5/B8； GSM: 900/1800；
EU	SRM949-EU: 5G-FDD: n1/n3/n5/n8/n20/n28f； 5G-TDD: n38/n40/n41/n78； 4G-FDD: B1/B3/B5/B7/B8/B20/B28f； 4G-TDD: B38/B40/B41/B42； UMTS: B1/B5/B8； GSM: 900/1800；
JP	SRM949-JP: 5G-FDD: n1/n3； 5G-TDD: n77/n78/n79； 4G-FDD: B1/B3/B5/B7/B8/B19/B28； 4G-TDD: B41； UMTS: B1/B5/B8/B19；
Media
Decode:	4K@120fps H.264/HEVC/VP9；
Encode:	4K@60fps H.264/HEVC/VP9；
Concurrency:	UHD30 decode + UHD30 encode
Interface
Display	1×4-lane DSI； 4K30 DisplayPort 1.4 (eUSB 2.0 + DisplayPort concurrency) DP SST – 1 × 4K60 DP MST – 2 × 4K30


Camera	4 x 4-lane CSI 21 + 21 + 21 MP or 64MP 30fps
Touch Panel	Capacitive touch panel with I2C interface
voice	5xI2S/TDM Supports external peripherals such as Codec and DSP
USB	1 x USB 3.0 Gen1，Compatible USB 2.0 Support USB OTG
Speacial Features:
WLAN	WIFI 6(2.4G/5G/6G, 2x2 MU MIMO, 802.11 a/b/g/n/ac/ax)
Bulebooth	BT5.2
GNSS	Gen 9v5.2;GPS,GLONASS,NavIC,BeiDou,Galileo,QZSS, SBAS
Supports independent multi-screen display
Supports OTA firmware upgrade
Certification
Certification	FCC/CE/IC/RCM/UKCA/PTCRB/GCF(US SKU) AT&T/Verizon/T-Mobile
Remarks: *under development
