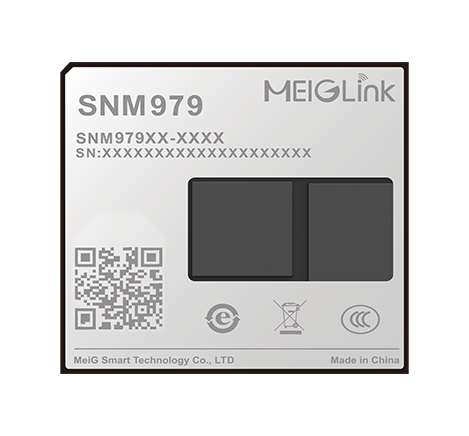

AI computing Module SNM979

The MeiG Smart SNM979 series core board is based on the Qualcomm SoC CQ7790S platform, employing a Qualcomm octa-core processor (1* Gold+ @3.1GHz + 4* Gold@2.95GHz + 3* Silver@2.0GHz) using a 4nm process. It integrates an Adreno™ GPU650@580MHz, supporting OpenGES 3.2, Vulkan 1.x, and OpenCL 2.0. It supports up to 4K@60fps video encoding or 4K@120fps video decoding, and supports H.264/H.265. The module runs on Linux 5.15/Android 16 operating systems, with 128GB+8GB of internal storage, and integrates 2x2 MIMO Wi-Fi 7 and BT 6.0 functionality. The module incorporates an AI processor with 4 x HVX and 1 x HMX, achieving a maximum AI computing power of 24 TOPS. The packaging forms a matrix with MEIG's computing modules, compatible with SNM950 (QCS8250), SNM970 (QCS8550), SNM980 (CQ8750S), and SNM932 (QCS6490) modules.

The SNM979 integrates a rich set of functional interfaces, including LCM, touchscreen, camera, microphone, speaker, UART, USB, HDMI, I2C, SPI, and PCIe interfaces; it can be widely used in video conferencing systems requiring computing power, industrial cameras, intelligent robots, live streaming equipment, AIBOX, intelligent information acquisition devices, and other products.

Advantages:

Qualcomm octa-core processor， up to 24TOPS of AI compute

Linux 5.15

Supporting WIFI 7, 2x2 MU MIMO

Multiple independent display support

4 camera interfaces

HDMI interface

4K@60fps recording / 4K@120fps playback video capability

Rich I/O: USB, PCIe, SPI, UART, and more

Extended lifecycle availability through 2036

Basic Attributes：
Product number：	Smart module with high computing power SNM979

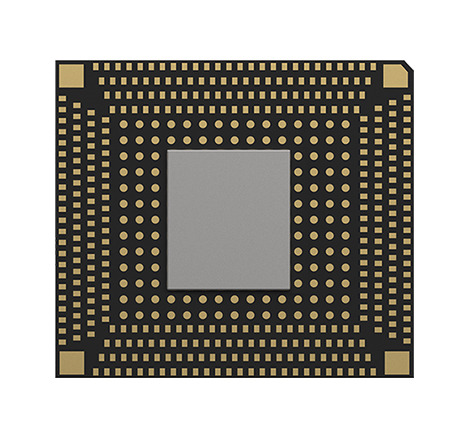

Package：	LGA
OS：	Linux
Storage：	128+8GB/256+12GB
Working temperature：	-30°C ~ +75°C
Storage temperature：	-40°C ~ +90°C
Size(mm)：	40.0 x 45.0 x 2.7mm
operating voltage：	3.5V~4.35V（typical value：3.8V）
Certification：	CCC*
Outstanding Features：
WLAN：	WIFI 7(2x2 MU MIMO)
BT： BT 6.0
Hardware Interfaces：
PCIe interface：	1
I2C interface：	5
UART interface：	3
SD Card interface：	1
SPI interface：	2
ADC interface：	2
GPIO interface：	≥19
Audio interface：
Digital interface：	• Digital interface：
	5 x IIS/TDM/PCM interface
	Support Audio over USB Type-C
*Camera Port：**
• 8 x 4-lane MIPI-CSI*
• Qualcomm Spectra™ 680 ISP
(36 M + 36 M + 36 M) @ 30 fps - triple camera
(64 M + 36 M) @ 30 fps - dual camera
108 M @ 30 fps - single cameras
Display Port：
• 2 x 4-lane MIPI-DSI
3480 × 2160@120Hz or 3360 x 1600@144H
• 1 x DisplayPort v1.4 with MST
1 x 8k@30Hz or 2x 4K@60Hz
• VDC-M (DSC Mode)
Video code：
Decode：	4K@240fps or 8K@60fps H.264/H.265/VP9
Encode：	4K@120fps or 8K@30fps H.264/H.265
Remarks: * under development
